NORSEAM®, The Standing Seam Roof Panel

The Insulated Standing Seam Roof System Engineered for Real-World Performance

The NorSeam® reduces install complexity. Improve thermal performance. Designed for roofing applications, not adapted to them.
Faster, simpler installation. High-performance insulation integrated. Built for architects and contractors

Overview Documentation Project Gallery Contact us

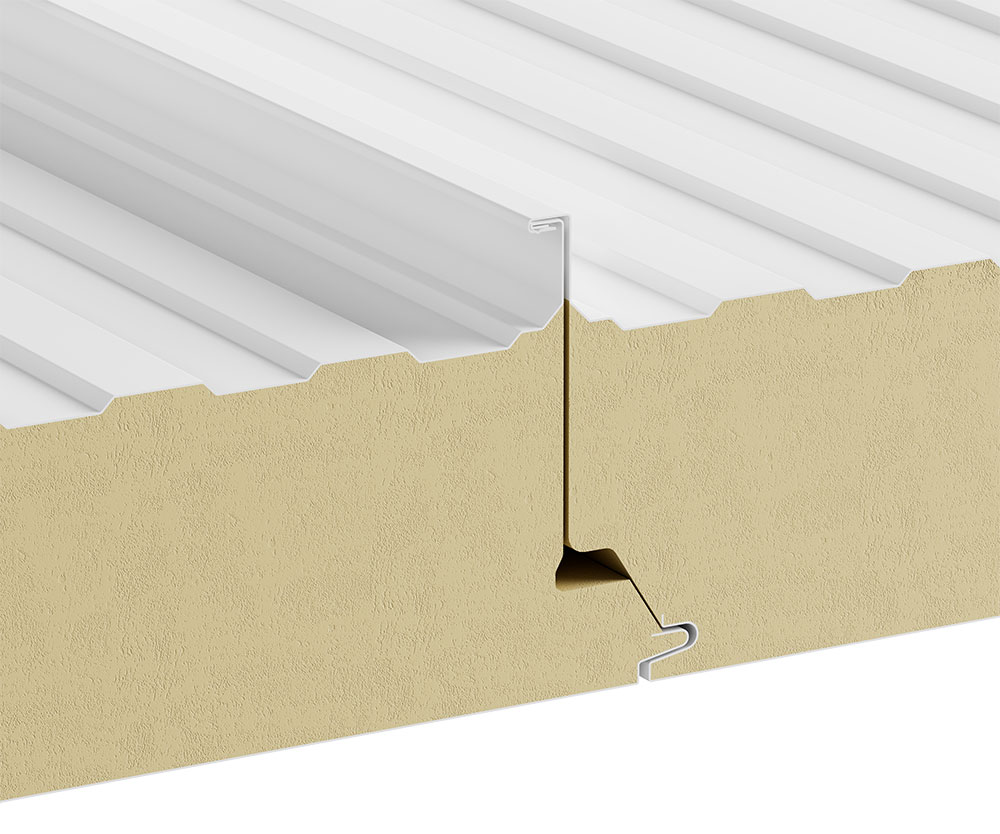

Panneau NORSEAM
DOWNLOAD THE TECHNICAL SHEET

NORSEAM® Technical Overview

NorSeam® is Norbec’s insulated standing seam roof system engineered for real-world roofing conditions.

Designed as a single, integrated roof assembly, NorSeam® replaces traditional multi-layer roof builds with a one-pass system that simplifies installation, reduces risk, and delivers long-term watertight performance.

INSULATION CORE

Polyisocyanurate – PIR core

PITCH | SLOPE ROOF

→ 0.25” in 12” for single panel runs
→ 0.5” in 12” where end laps are required

THICKNESS

→ 4’’ [101.6 mm]
→ 5” [127 mm]
→ 6’’ [152.4 mm]
→ 7’’ [177.8 mm]

WIDTH

42.5’’ [1,079.5 mm]

LENGTH

8′ [2 438.4 mm] – 60′ [18 288 mm]

WEIGHT

4” 5” 6” 7”
24/26 ga 2.63 2.85 3.07 3.29
24/24 ga 2.85 3.06 3.27 3.54
22/22 ga 3.35 3.56 3.77 4.04

R-VALUE

→ R8/in @ 75 °F mean temperature
→ R9/in @ 35 °F mean temperature

COLOURS

NORSEAM® panels are available in a wide range of colours.

Set the tone for your next project!

All steel facings are available in Galvalume upon request

Exterior Collection (PVDF)

Interior Collection

NORSEAM® Documentation

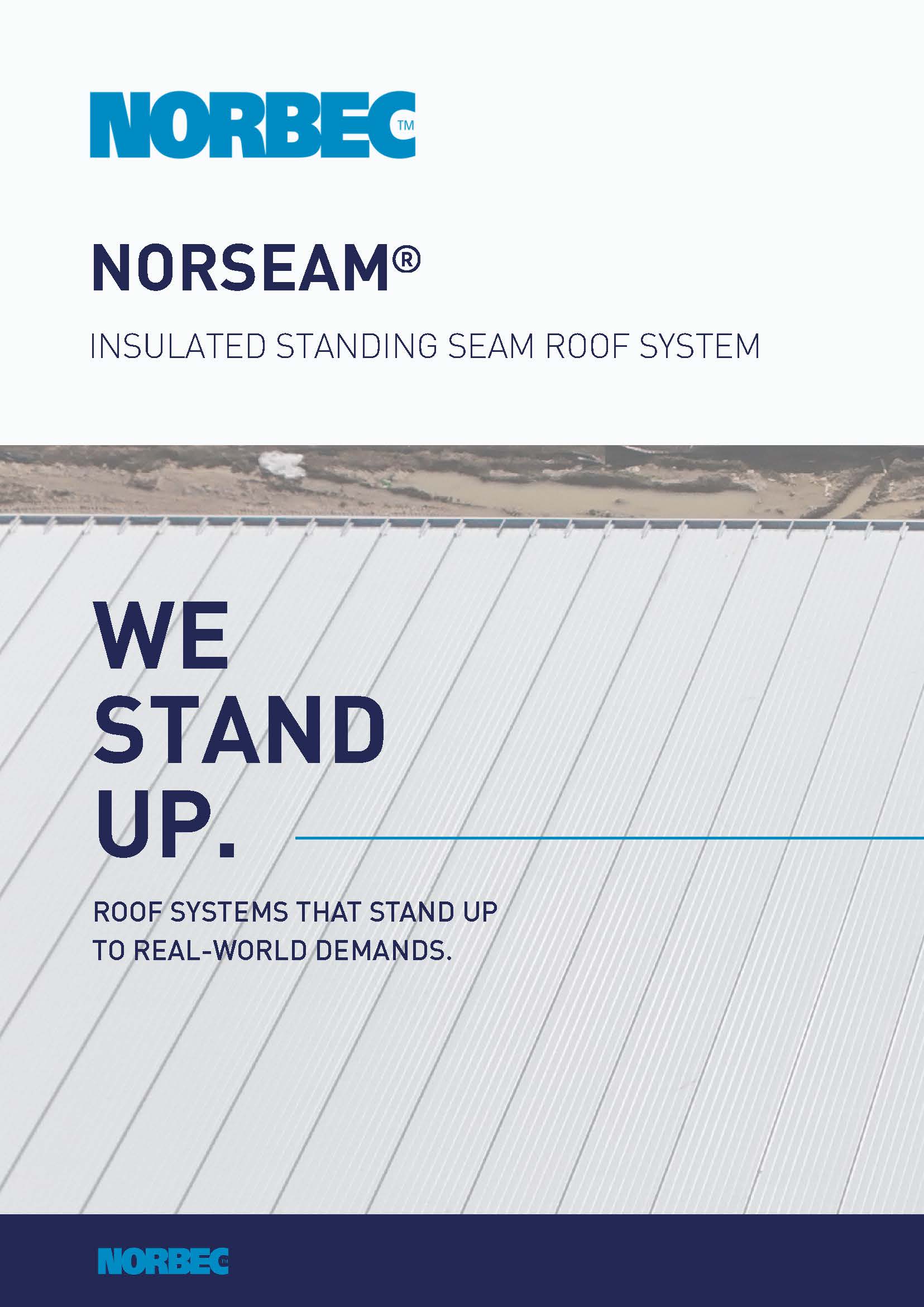

NORSEAM® - Overview

Download

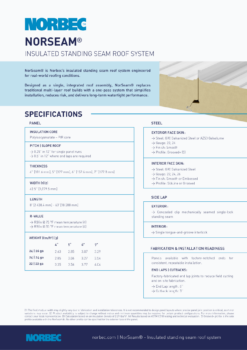

NORSEAM® - Technical Sheet

DOWNLOAD

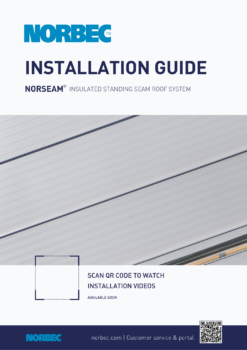

NORSEAM® - Installation Guide

DOWNLOAD

NORSEAM® - CAD Details in PDF

DOWNLOAD

NORSEAM® - Spec

DOWNLOAD

DOWLOAD THE TECHNICAL SHEET

Check your inbox! You’ll receive the link to the PDF at the email address used on this form.

Talk to a sales representative to request product information

Contact us
