Woodbine Theatre
Project details
Project Name: Woodbine Theater
Project Location: Toronto, Ontario
Market: Building Envelope
Project Type: Casino
Building Code:
Key Stakeholders
Installer: Bothwell Accurate
Architect: CGL Architects
General Contractor: Great Canadian Gaming Corporation
Norbec Sales Representative: David Wandler
AT A GLANCE
Tight timing constraints
Challenging angles and integration of architectural mesh
Fire-rated solution
Installation of exceptionally long panels, up to 46 feet in length
Adaptation to an unconventional building structure
CLIENT OVERVIEW
The Great Canadian Gaming Corporation sought an expansion that would redefine entertainment experiences. Nestled in Toronto, the Woodbine expansion, unveiled on May 3, 2024, offers a multifaceted destination. This project seamlessly integrates a 5,000-seat multipurpose theatre, diverse culinary options, and two luxurious hotels with recreational amenities – all within a cohesive entertainment complex.
INTRODUCTION
The Woodbine Theatre project exemplifies innovation and efficient construction.
Spanning 70,000 square feet, the building showcases the aesthetic and functional use of fire-rated insulated metal panels (IMPs).
Led by CGL Architects and meticulously installed by Bothwell Accurate, this project sets a new standard for entertainment venue construction.
PROJECT CHALLENGES
The Woodbine Theatre Project faced several obstacles on the
way to completion, but careful planning and creative solutions
overcame them all:
Finding a fire-resistant material that complied with strict regulations and could be implemented within a tight timeline was crucial to ensure project completion before winter.
The unique design and tall building also presented some logistical difficulties. Handling panels as long as 46 feet, especially with the added complication of incorporating decorative mesh, required a lot of accuracy an skill.
The project also required adjusting to the building’s unusual structure, which emphasized the need to be flexible and inventive.
CUSTOM NORBEC SOLUTION
To meet the project’s 2-hour fire rating requirement, a 6-inch thick, fire-rated mineral fiber core panel was chosen. The engineering process demanded more intricate calculations due to the building’s unique design. Through close collaboration with the architects and installers, these challenges were successfully addressed.
Products used:
- Noroc®: 6-inch panels meeting 2 hour fire rating
- Exterior steel: 22 ga custom champaign bronze with smooth micro-ribbed profile
- Interior steel: 26 ga in imperial white with smooth silkline profile
Noroc

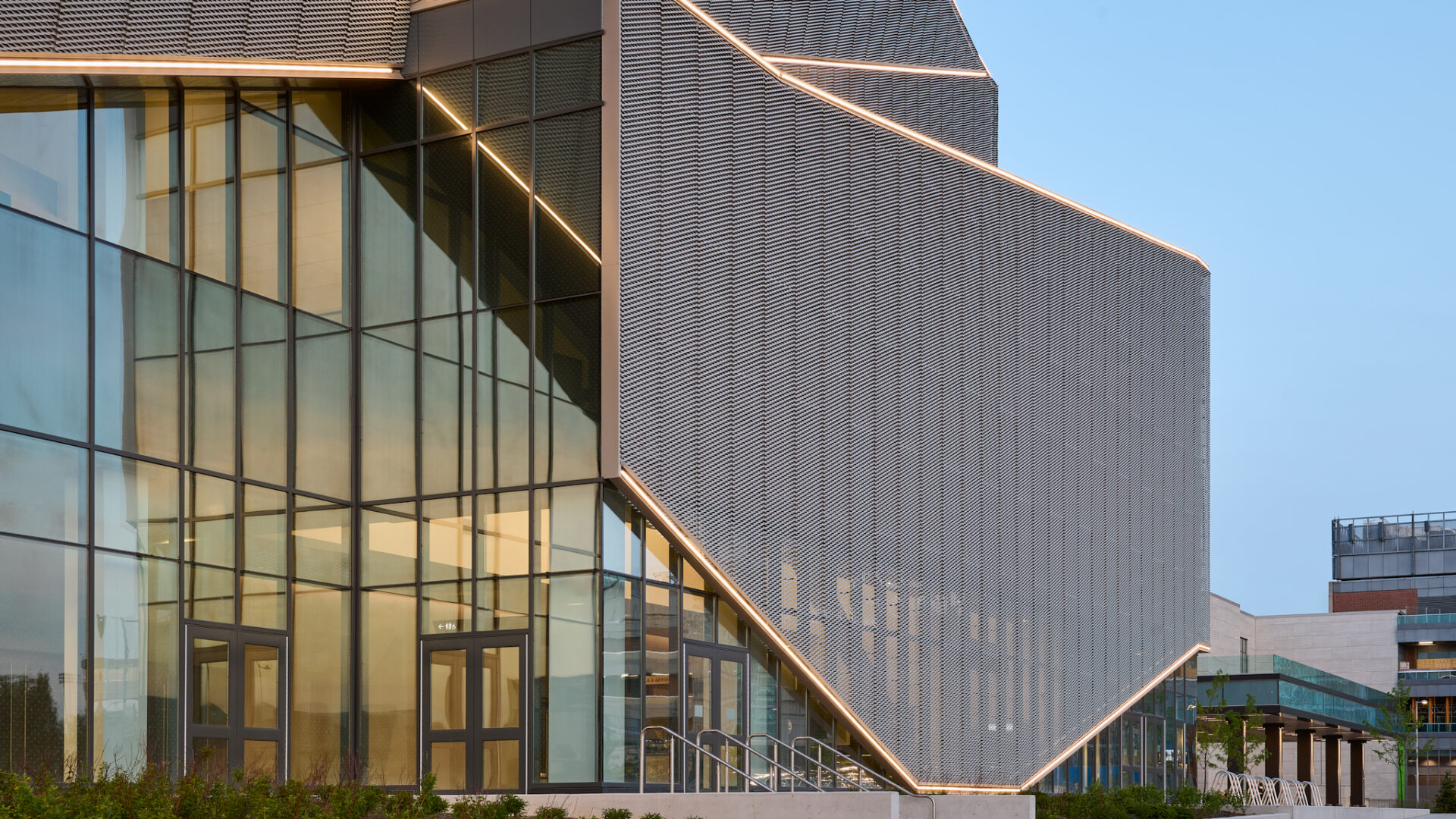

See the Woodbine Theater in all its glory!
RESULT
The Woodbine Theatre project is a resounding success. The completed building looks visually striking and demonstrates the effectiveness of fire-rated IMPs in achieving both aesthetic and performance goals. The Woodbine project’s positive impact extends beyond its innovative construction, spurring job growth by creating over 2,700 construction positions and sustaining over 1,700 permanent jobs.
